Installation prompt!
Memory installation instructions: It should be inserted into the black main slot first. Inserting into the gray slot does not work.
Mixing different specifications of memory is not allowed. We need four unified specifications of memory.

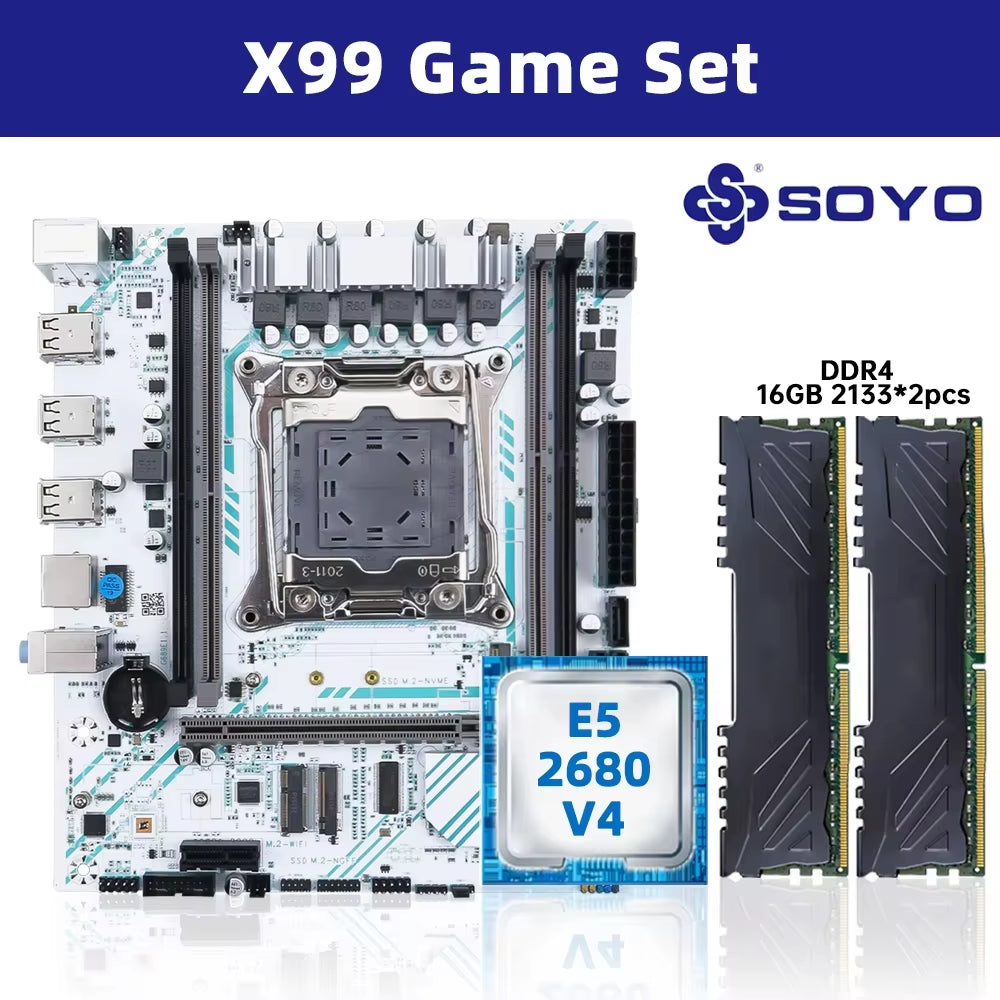

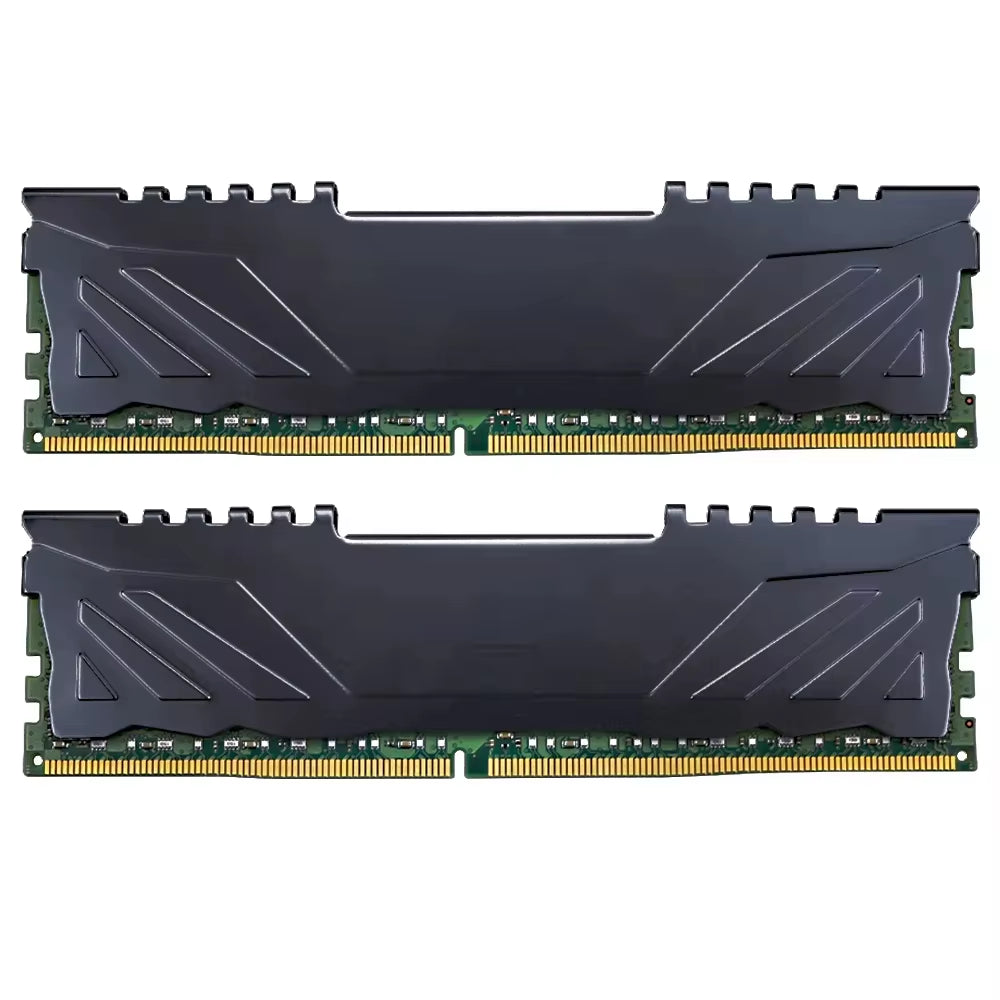

Motherboard+CPU+RAM: 1*MG-X99 D4+1*E5 2680 V4 CPU+2*DDR4 16G
CPU:
Processor Series: Intel Xeon
Model number: E5 2680 V4
Processor Speed: 2.4GHz
Maximum core frequency: 3.3GHz
Processor Socket: LGA2011-3
Process: 14nm
Memory type: DDR4 1600/1866/2133/2400
The number of CPU cores: 14
The number of threads: 28
L3 cache size (MB): 35 MB
Wattage: 120 Watts
cpu will be final double tested before shipping
In this kit (motherboard+CPU+RAM), motherboard is brand new, CPU and RAM is used(not new). We fully combos testing before delivery. and make sure the whole set can works perfectly. Since CPU and RAM have used marks on it, please don't place order if you mind. (The old and new level of RAM+CPU cannot be controlled, and it is sent randomly.)

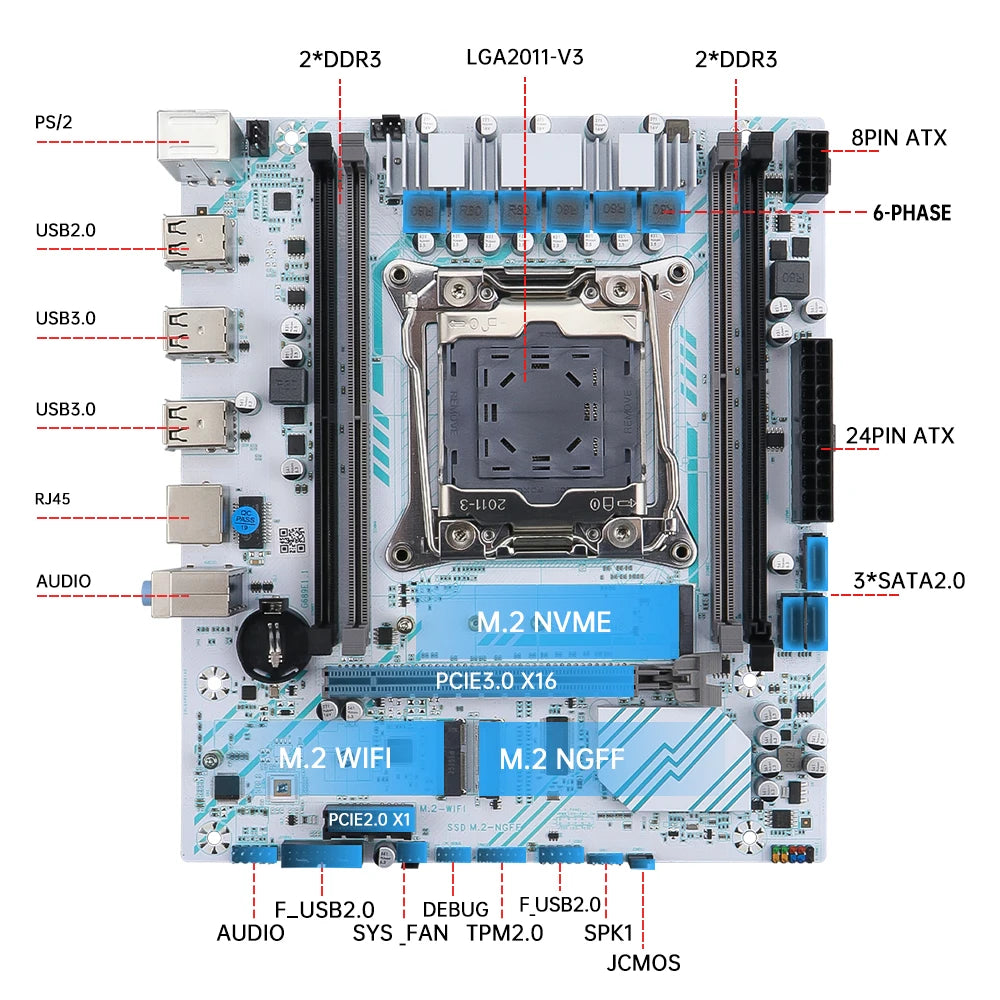

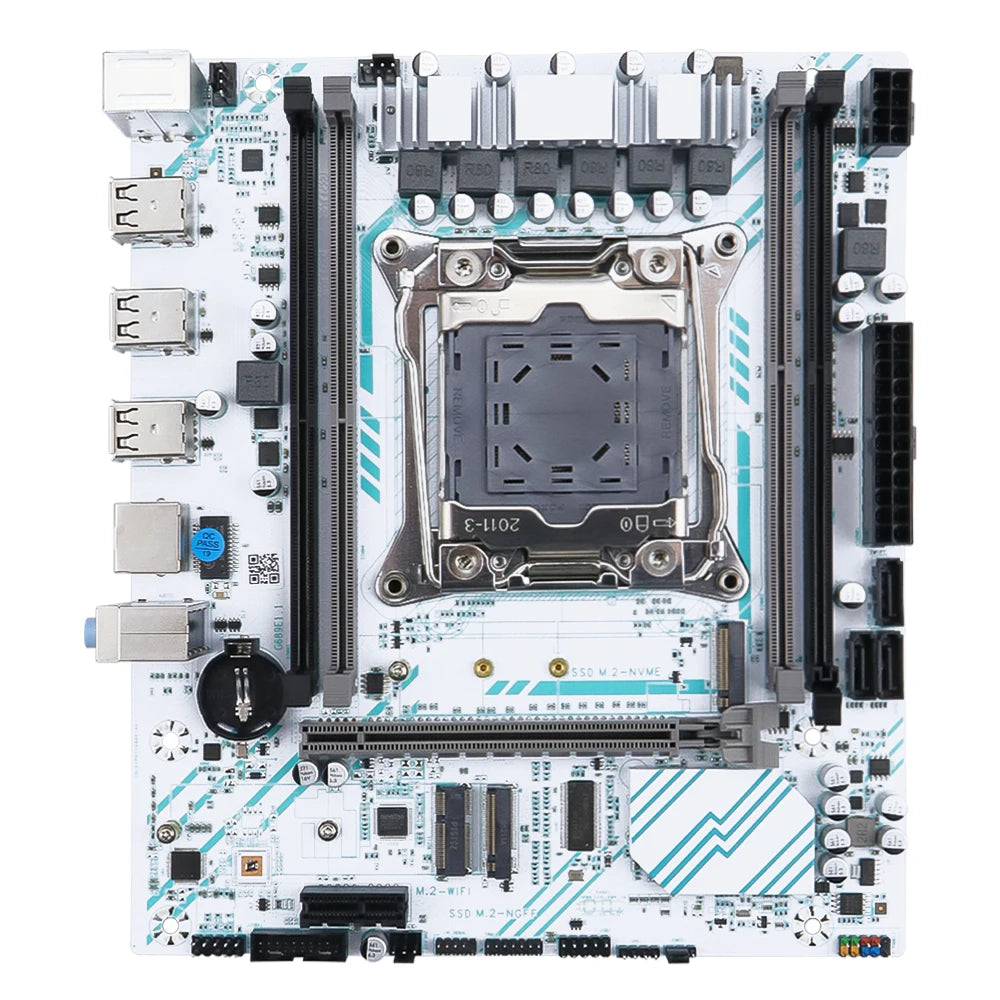

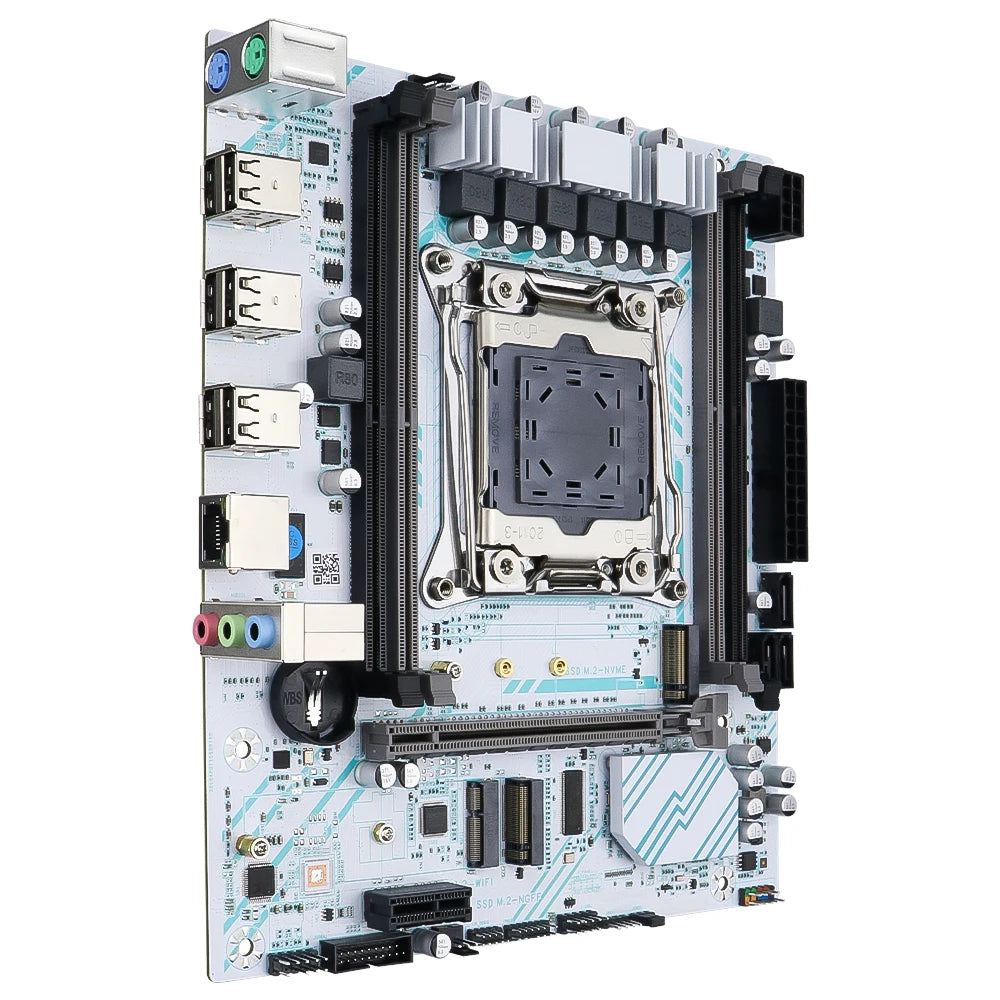

**otherboard Specifications**
**CPU Support**
- Intel LGA 2011-3 Socket
- Compatible with Intel Xeon E5 V3 & V4 Series Processors
- FSB Speeds: 2133/2400/2666 MHz
**Chipset**
- Intel Panther point X99C612/H81/HM55/B75/P75/Q75/H77 etc.; If you can't accept, please don't buy.
**Memory**
- DDR4 Support: 2133/2400/2666 MHz
- Maximum Capacity: 128GB
•Dual-channel architecture
**Storage**
- 3x SATA 2.0 (3 Gb/s) Ports
- 1x NVME M.2 Slot
- 1x NGFF M.2 Slot
- 1x WIFI M.2 Slot
**I/O Ports**
- **Rear Panel:**
- 2x PS/2 Ports
- 6x USB 2.0 Ports
- 1x RJ45 Gigabit LAN Port (10/100/1000 Mbps)
- 1x 3-in-1 Audio Port (Line In/Line Out/Mic In)
- **Front Panel Headers:**
- 1x F_AUDIO (Front Audio)
- 1x F_PANEL (Front Panel Controls)
- 1x F_SPEAKER (System Speaker)
**Onboard Connectors**
- 1x 24-Pin ATX Power Connector
- 1x 8-Pin ATX12V Power Connector
- 2x USB 2.0 Headers (Supports 4x USB 2.0 Ports)
- 2x Fan Headers (CPU_FAN + SYS_FAN)
**Audio**
- Realtek ALC 6-Channel HD Audio Codec
- Front Audio and Stereo Mic Support
**Networking**
- Integrated Realtek Gigabit LAN (10/100/1000 Mbps)
**Expansion Slots**
- 1x PCI Express x16 Slot
- 1x PCI Express x4 Slot
**Additional Features**
- 1x LPC Debug Header
- 1x TPM Header (Security Module Support)
- 1x JCMOS Header (CMOS Clear)
**Form Factor**
- Micro-ATX Design (18.8 x 21.5 cm)
**Key Features**
- **Enterprise-Grade Memory**: 128GB DDR4 4-Channel Support
- **Triple M.2 Flexibility**: NVME, NGFF, and WIFI Expansion
- **Legacy Connectivity**: Dual PS/2 + 6x USB 2.0 Ports
- **Robust Cooling**: Dedicated CPU/SYS Fan Headers
- **Server-Ready**: Xeon E5 V3/V4 Support for Workstations
Note:
(2) The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.
(3)For tax issues, please make sure that you can solve the customs clearance problem yourself, if you can't, we don't recommend that you buy goods in our store. We are not responsible for customs duties. Thank you for your understanding.
(4) Install the memory. All RAM needs to be installed in slot #1 and slot #2 (orange slots) first. The motherboard's gray RAM slots (#3/#4) will not work alone. The memory needs to be inserted into the same color slots
# # #Because there are too many computer accessories in the market, it is likely that there are some niche brands, poor quality or ES/QS versions of CPU, RAM, M.2 SSD or other accessories may appear incompatible with the motherboard. You can confirm with our customer service before purchasing. If there is no confirmation before purchase, then incompatibility will occur when you receive the motherboard and we will not accept refunds. When you purchase this link, we assume that you have read and understood the situation ation . Please note please do not buy!
